The technology incorporated in the Hazelett twin-belt zinc strip casting machine has evolved over decades of innovative engineering and design in our shops and in those of our partners where casting trials are conducted. Each new casting machine incorporates the latest mechanical, electrical, and process improvements and delivers ever-increasing production volumes and product quality.

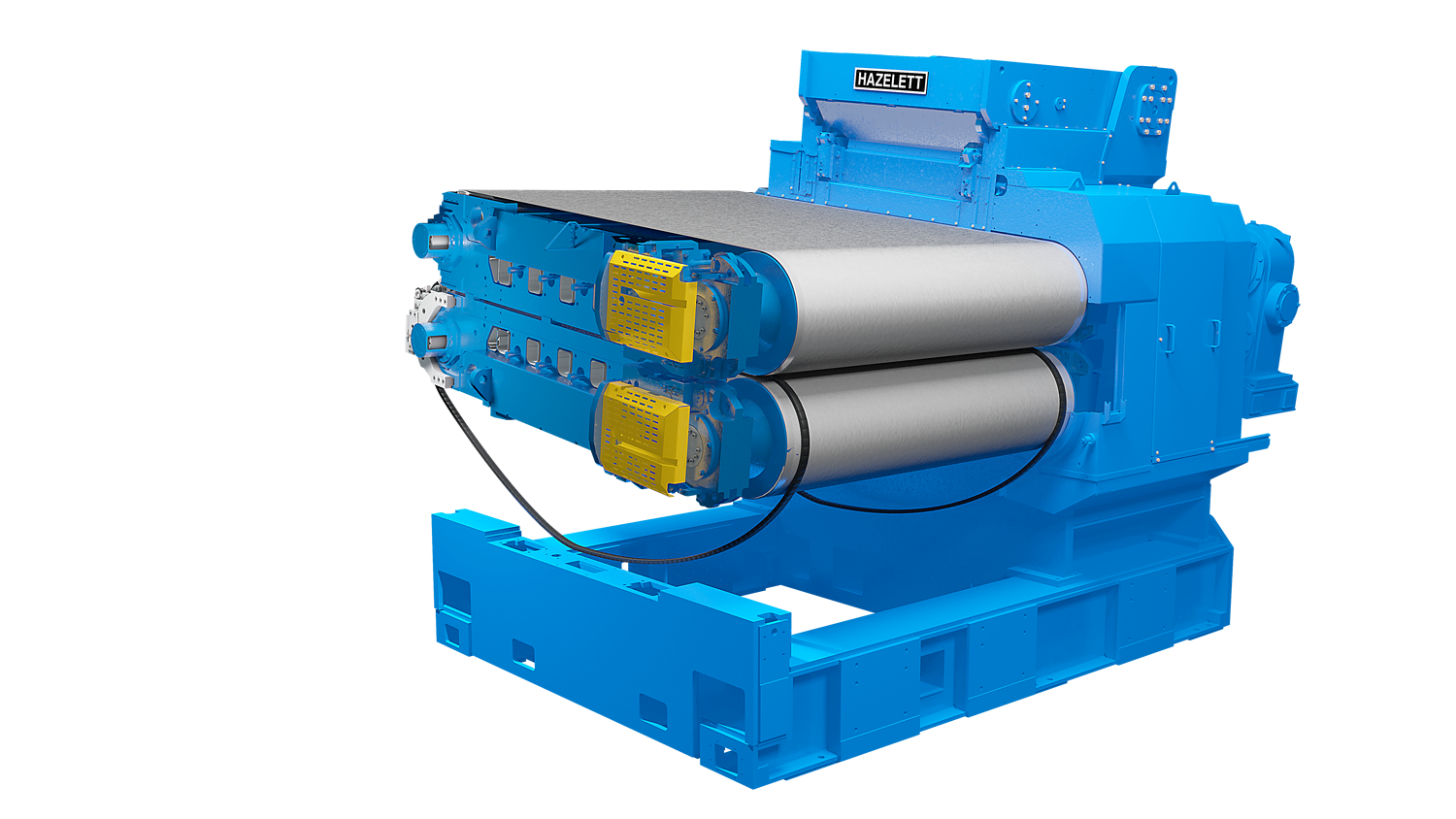

Hazelett twin-belt caster for zinc - core machine

Open Pool Feeding

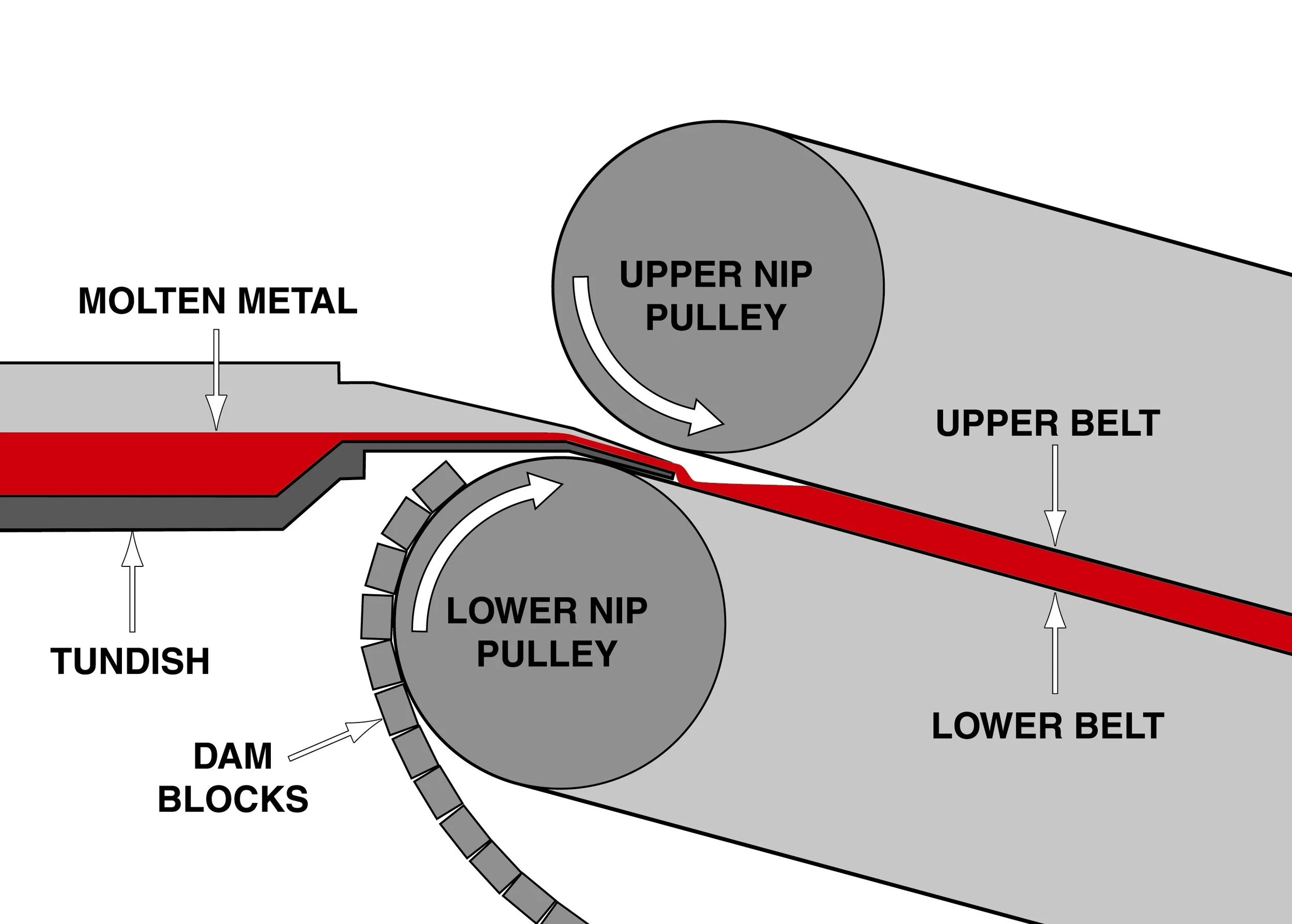

Open pool feeding of metal onto offset nip pulleys

Open pool feeding is used when casting zinc strip. In this case, the upper belt pulley is offset downstream. Metal flows through an open trough or closed snout into a standing pool of molten metal formed at the convergence of the belts. Metal flow is regulated in this open pool feeding system by means of a laser pool level sensor signal that controls the speed of the casting belts. As the pool level decreases from setpoint, the system will slightly decrease the speed of the casting belts to allow the molten pool level meniscus to rise towards the setpoint.

MOLD interface

Cast metal solidifies as it travels between the belts

Molten metal solidifies adjacent to the belts, forming a shell that encloses a liquid sump as the slab proceeds down the mold. Solidification is normally complete approximately 70% to 80% down the mold length. The critical area of the mold is the interface between the solidifying metal and the moving, water-cooled belts.
